Image similar, original photo will follow

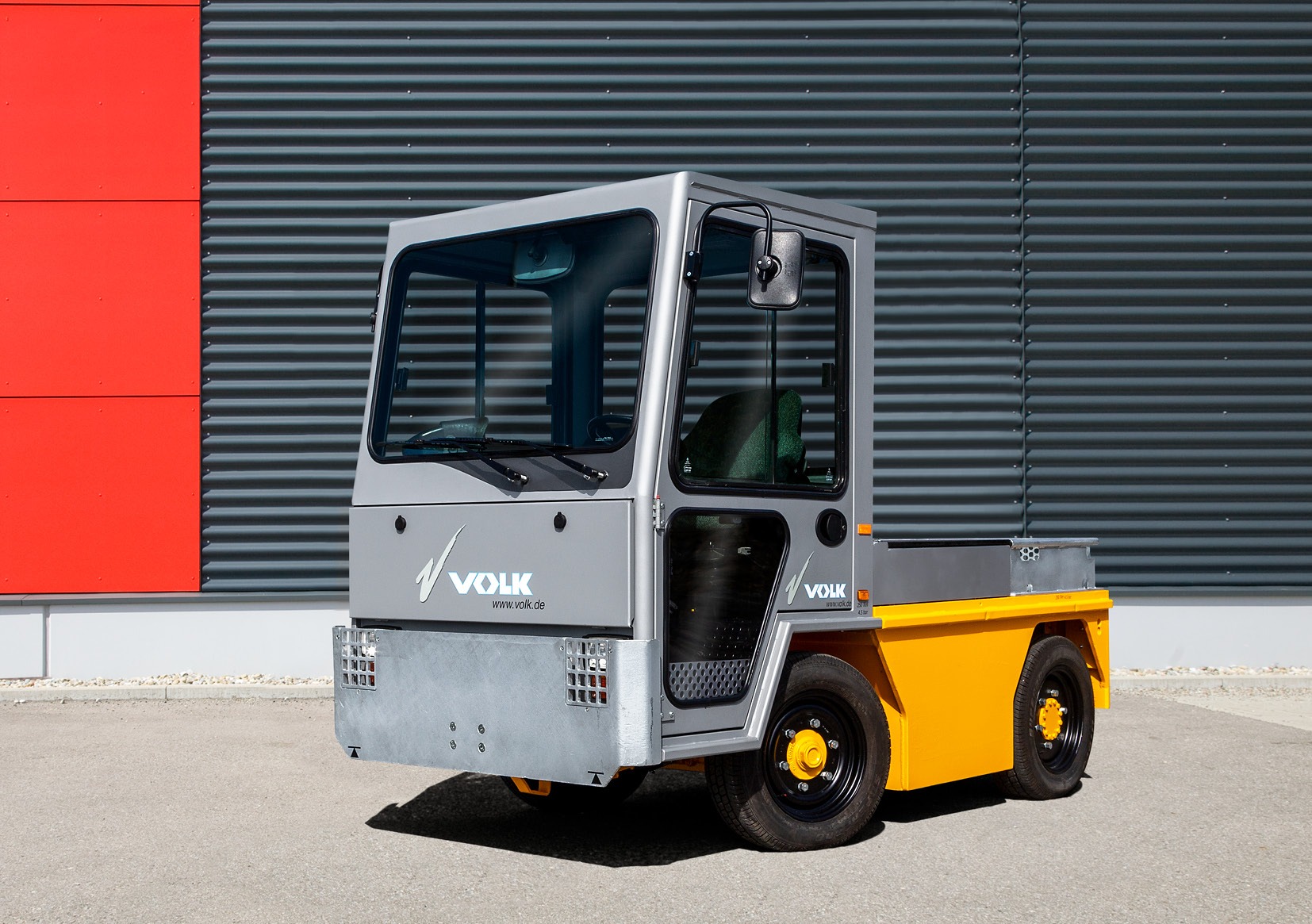

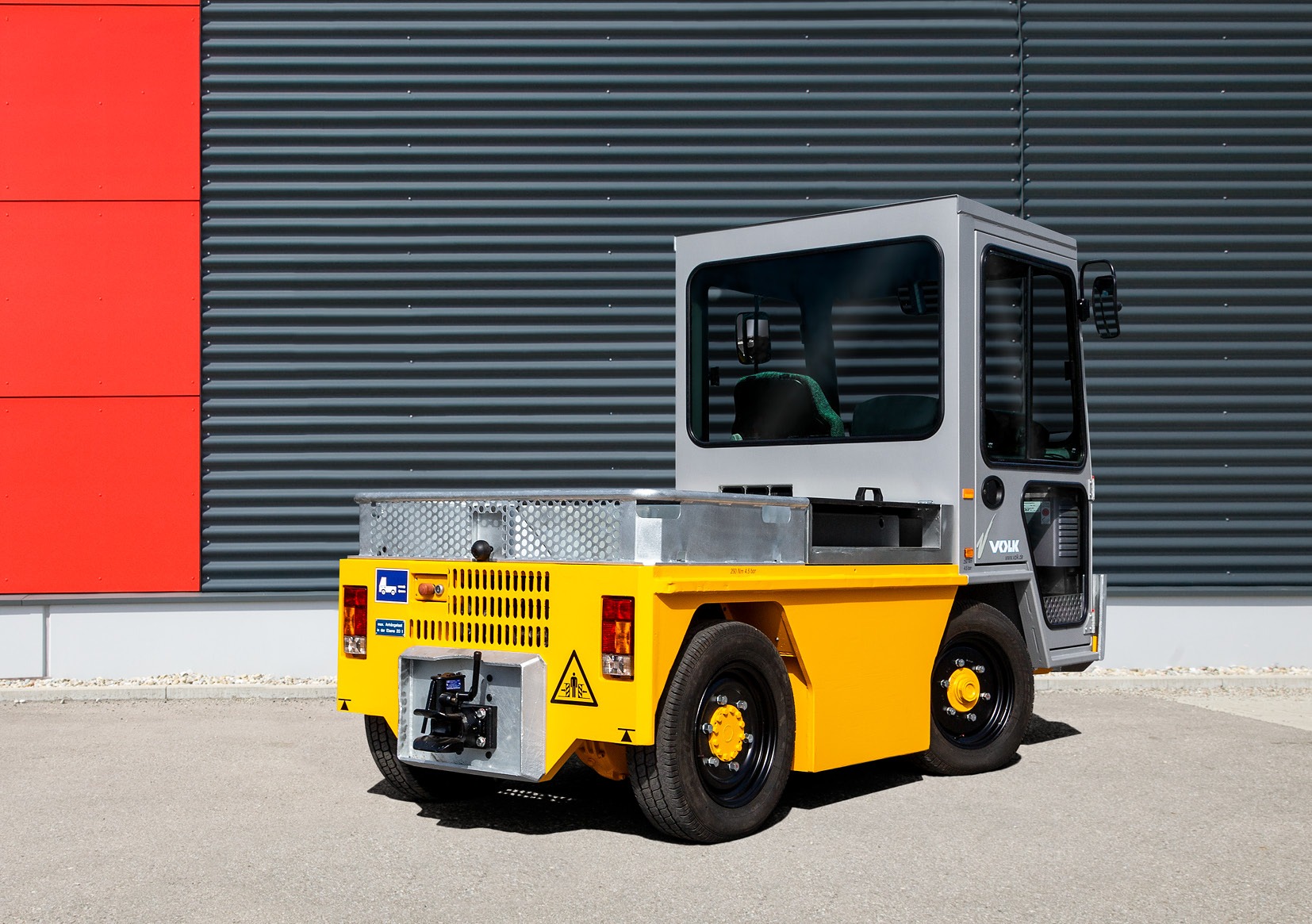

EFZ 20 N
Electric tow tractor
Used vehicle
Vehicle equipment
- zinc dipping frame
- solid steel front bumper
- heater
- defroster
- fresh air shutter
- air supspended driver seat
- co‐driver seat
- inching control, rear side
- crawling switch
- video rear-view system for towing hitch
- automatic towing hitch Rockinger
- towing bar safety-catch
Vehicle data
| Vehicle no. |
FN262667 |
|
| Year of construction |
05/2003 |
|
| Operating hours |
|
n.a. |
|
general overhaul |
2020 |
Performance
| Towing capacity |
Maximum towing capacity |
33.000 lbs |
|
Drawbar pull |
Peak performance (5 min rating) |
2.700 lbf |
|
Driving speed |
without towed load |
15,0 mph |
Drive
|
Electric motor |
Performance (60 min rating) |
14,0 kW (ac) |
| Battery |
Capacity |
80 V / 560 Ah |
Dimensions
|
Length |
3.040 mm |
|
|
Width |
1.250 mm |
|
|
Height |
1.970 mm |
|
|
Turning radius (outsided chassis) |
3.465 mm | |
|
Weight |
7.500 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
