TFW 4

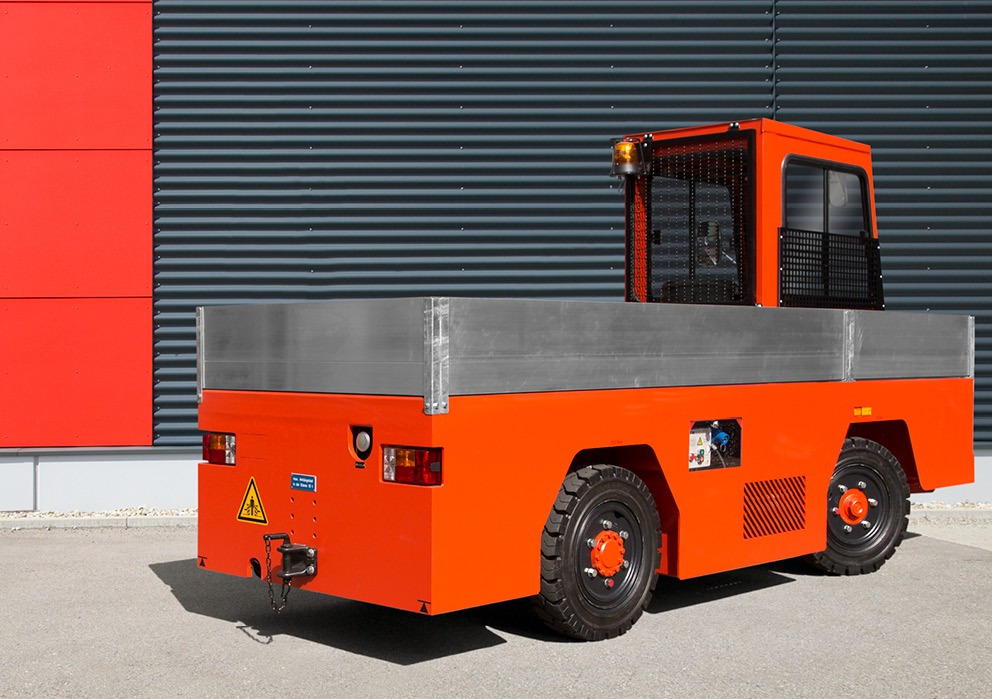

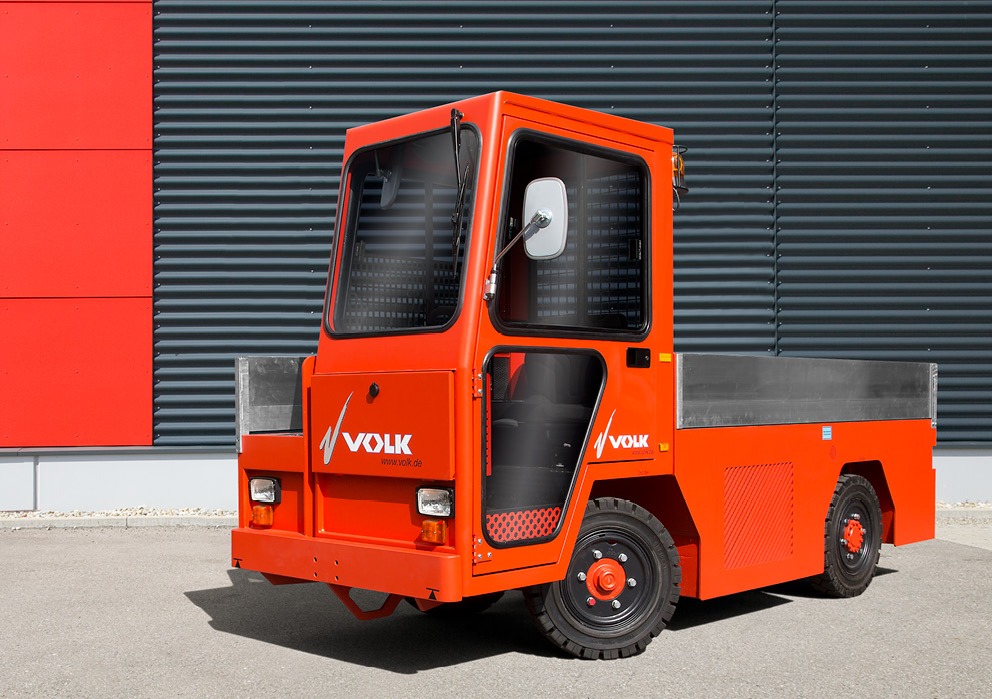

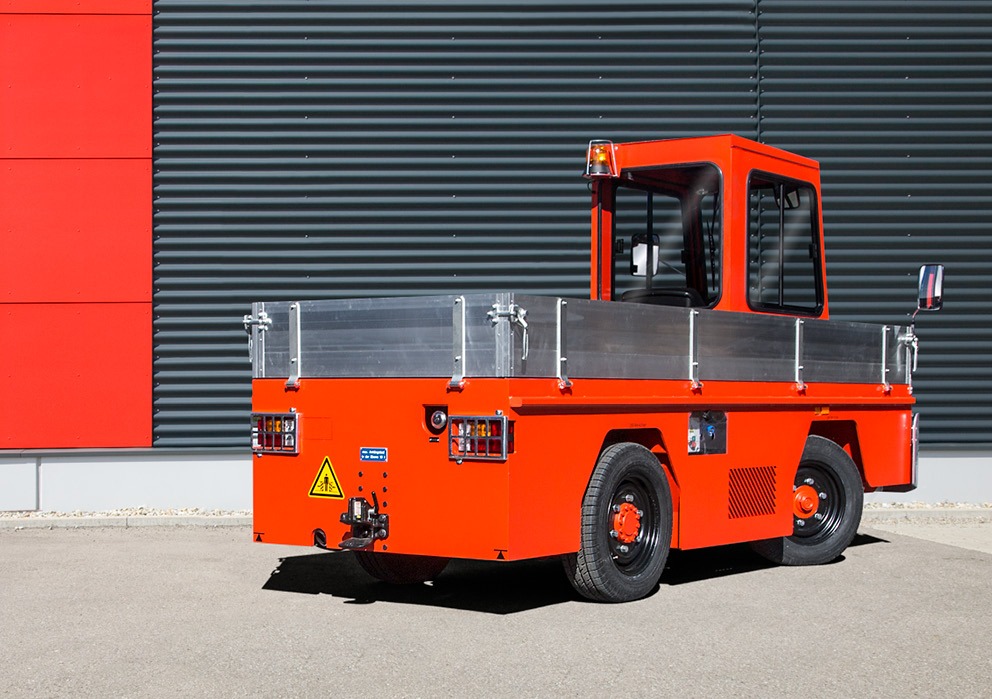

LGP platform truck
Performance
| Payload | Payload on loading area |
8.800 lbs |
| Towing capacity | Maximum towing capacity |
22.000 lbs |
| Drawbar pull |
Maximum drawbar pull |
2.686 lbf |
| Driving speed |
without towed load |
15.5 mph |
|
with 8.800 lbs load capacity |
15.5 mph |
Drive
|
LGP motor |
|
38 kW |
Dimensons
|
Length |
3.780 mm |
|
|
Width |
1.250 mm |
|
|
Height |
2.100 mm |
|
|
platform length |
2.500 mm | |
|
platform width |
1.250 mm | |
|
Turning radius (outside chassis) |
3.820 mm | |
|
Weight |
4.565 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
