EFZ 20 K

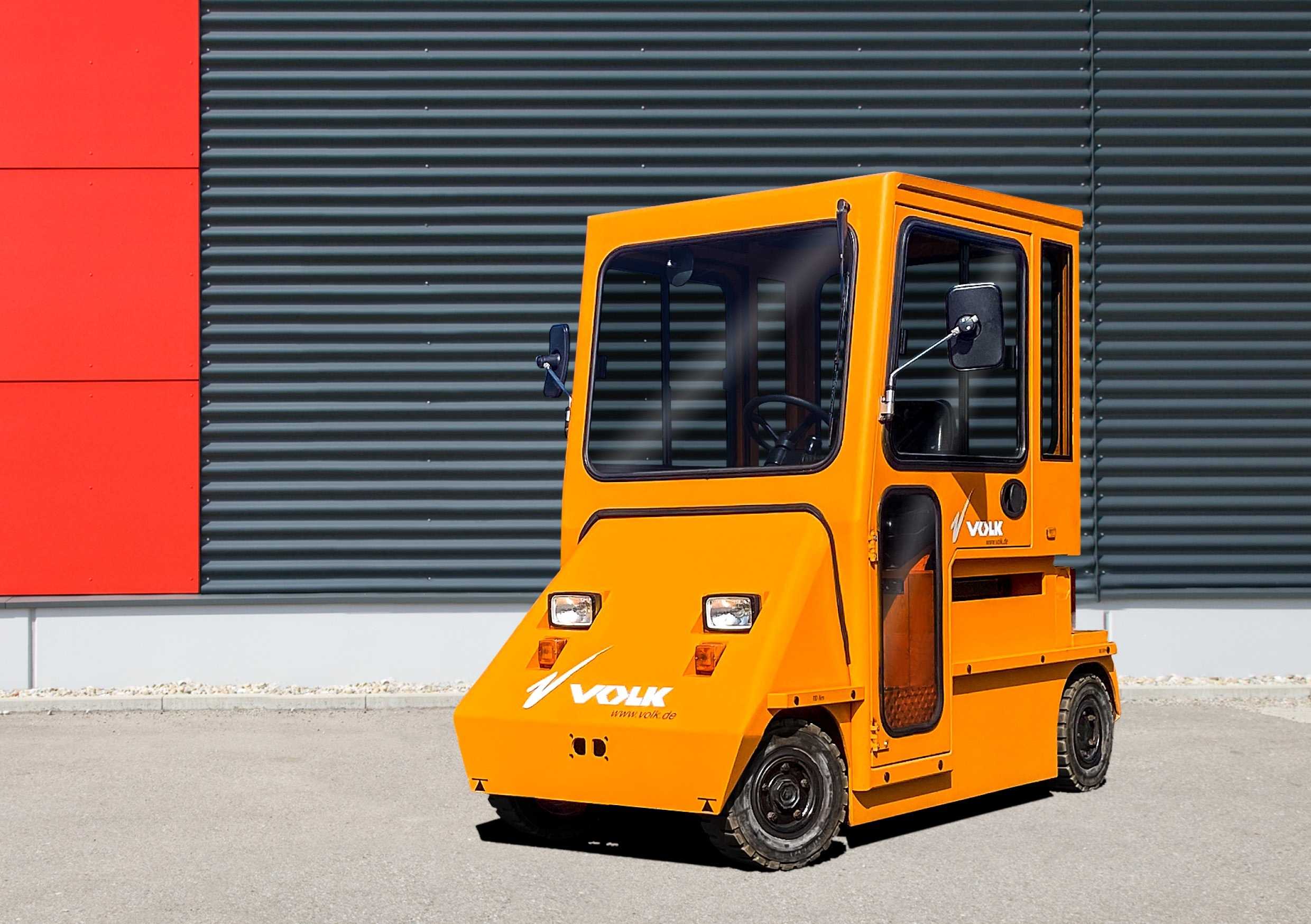

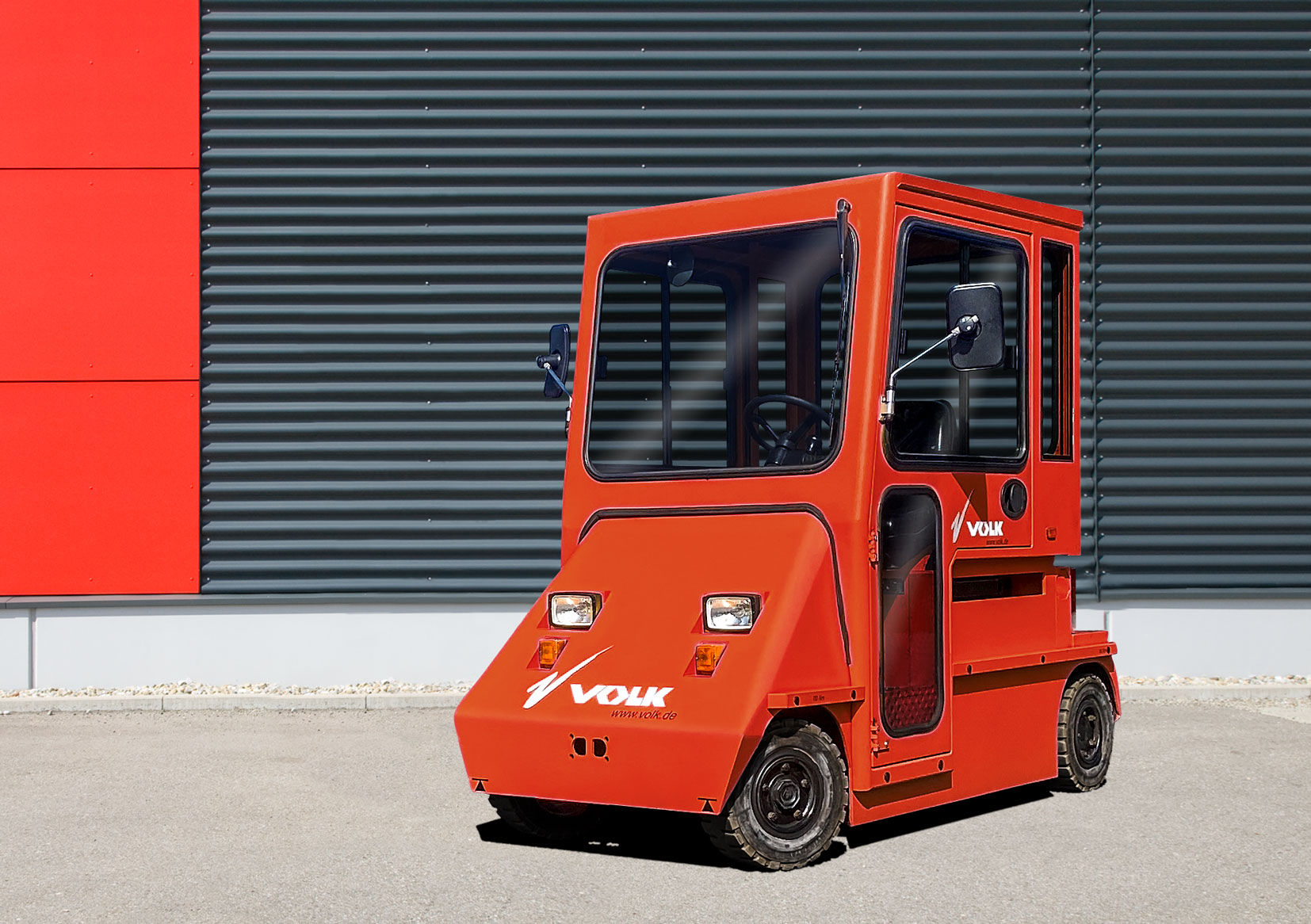

Electric tow tractor
Used vehicle
The VOLK EFZ 20 K Electric Tow Tractor was designed especially for use in cramped spaces. With its extremely compact dimensions, it clearly stands out from the competition in the performance class of up to 20.000 kg towing load. A powerful twin-motor AC drive with an electronic differential lock and a large vehicle weight guarantee a maximum degree of safety and traction even under adverse track conditions or when operating on ramps.
Vehicle data
| Vehicle no. |
FN064086 |
|
| Year of construction |
2011 |
|
| Operating hours |
|
1.450 h |
Performance
| Towing capacity |
Maximum towing capacity |
44.000 lbs |
|
Drawbar pull |
Maximum drawbar pull (5 min rating) |
2.100 lbf |
|
Driving speed |
without payload |
11.5 mph |
Drive
|
Electric motor |
Performance (60 min rating) |
2 x5 kW (ac) |
| Battery |
Capacity |
48 V / 750 Ah |
Dimensions
|
Length |
2.150 mm |
|
|
Width |
1.070 mm |
|
|
Height |
1.930 mm |
|
|
Platform: Length / Width |
440 / 650 mm | |
|
Turning radius (outsided chassis) |
2.970 mm | |
|
Weight |
5.512 lbs |
