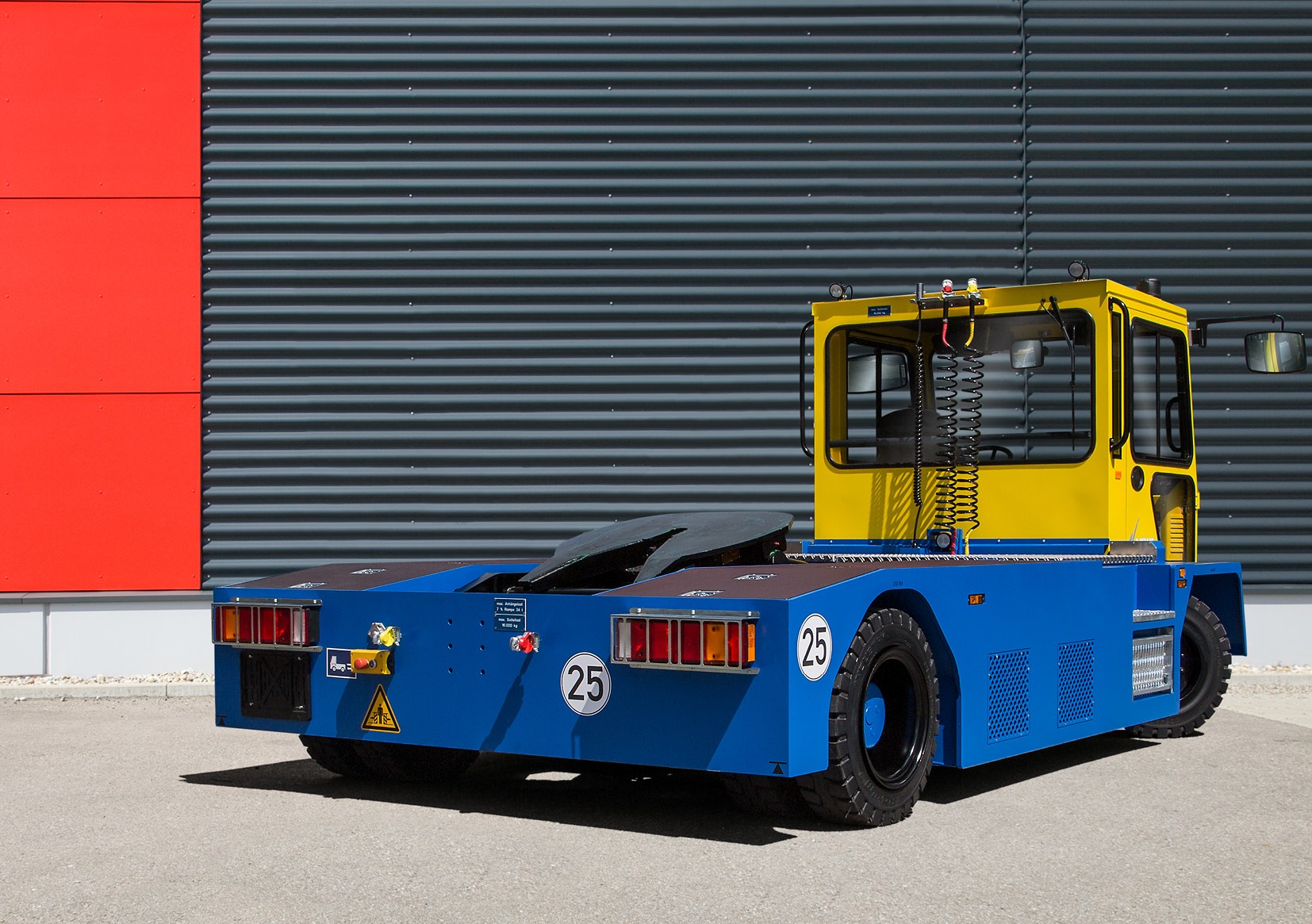

EFZ 40 SK
Electric tow tractor
Performance
| Towing capacity | Maximum towing capacity |
88.000 lbs |
| Fifth-wheel load | 35.200 lbs | |
| Drawbar pull | Maximum drawbar pull (5 min rating) | 9.100 lbf |
| Driving speed |
without towed load |
13.0 mph |
|
with 88.000 lbs towed load |
4.0 mph |
Drive
|
Electric motor |
Performance (60 min rating) |
38 kW (ac) |
| Battery |
Maximum battery capacity |
80 V / 1.250 Ah |
Dimensions
|
Length |
4.870 mm |
|
|
Width |
2.400 mm |
|
|
Height |
2.100 mm |
|
|
Turning radius (outside chassis) |
5.950 mm | |
|
Weight |
21.200 lbs |
No responsibility is taken for the correctness of this information. The permissible speed can be lower depending on the specification of the trailers and the applicable local laws and regulations.
